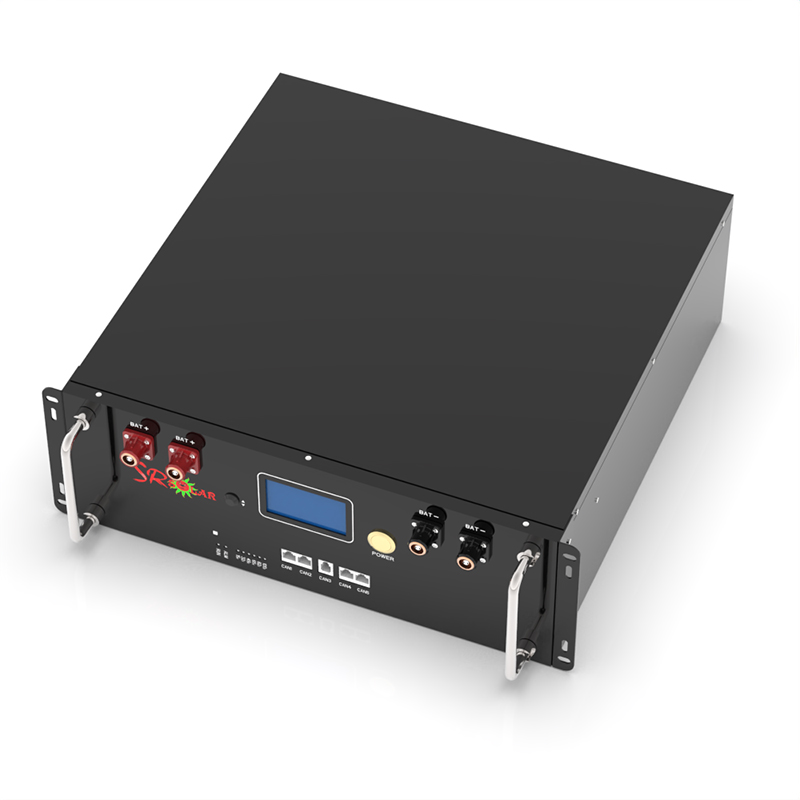

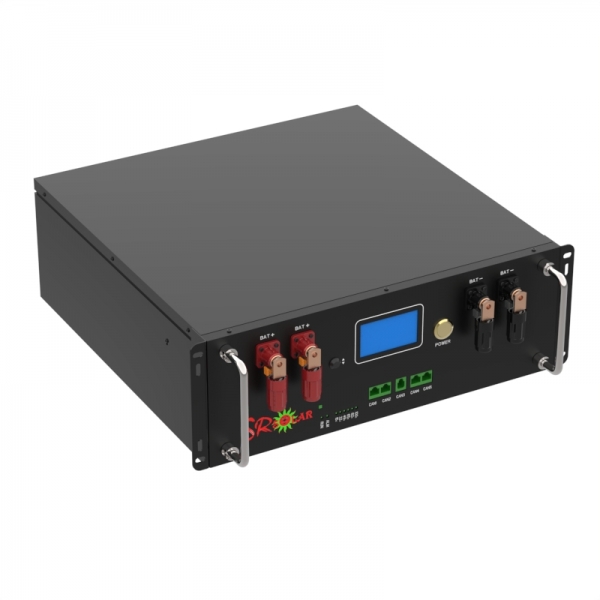

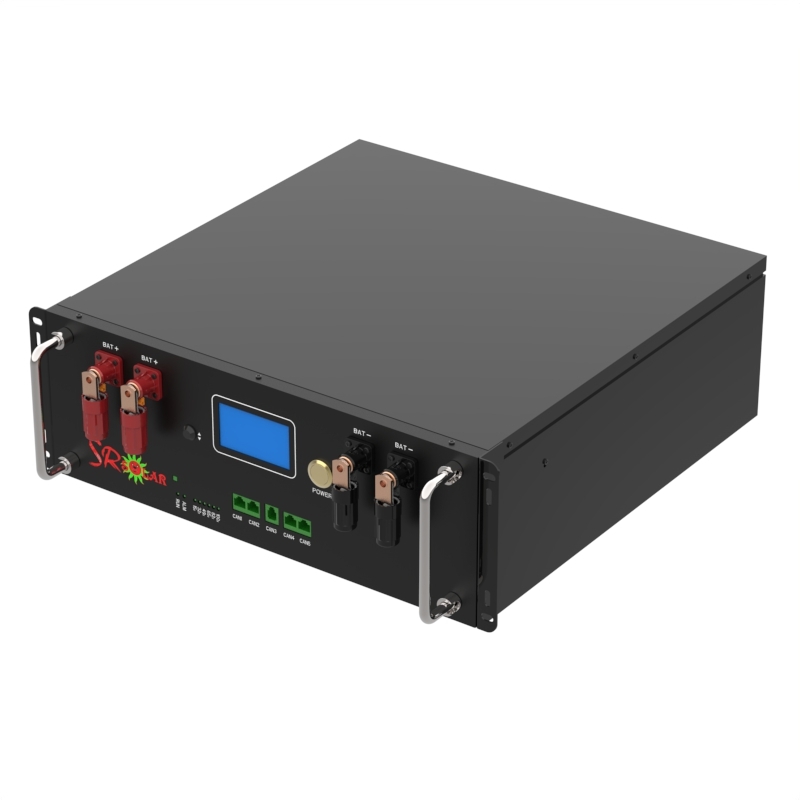

Rack Mount Energy Storage Battery 48V 200Ah Lifepo4 Battery Feature
1. Long lifespan time with 6000 cycles and 5 years warranty, 25 years life design

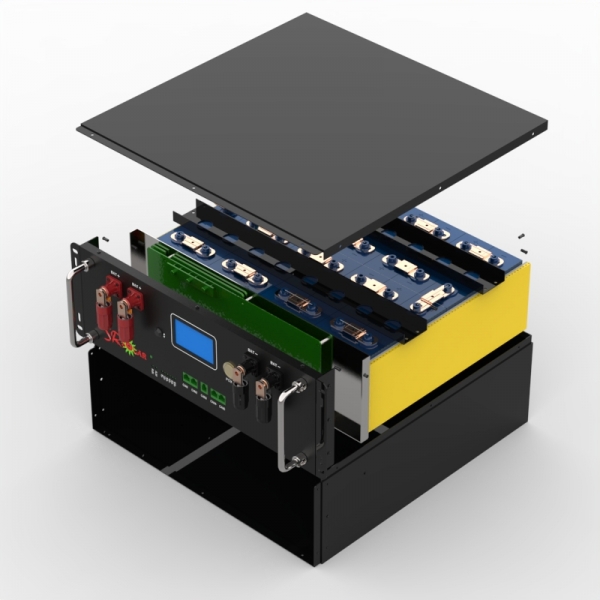

2. 4U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance

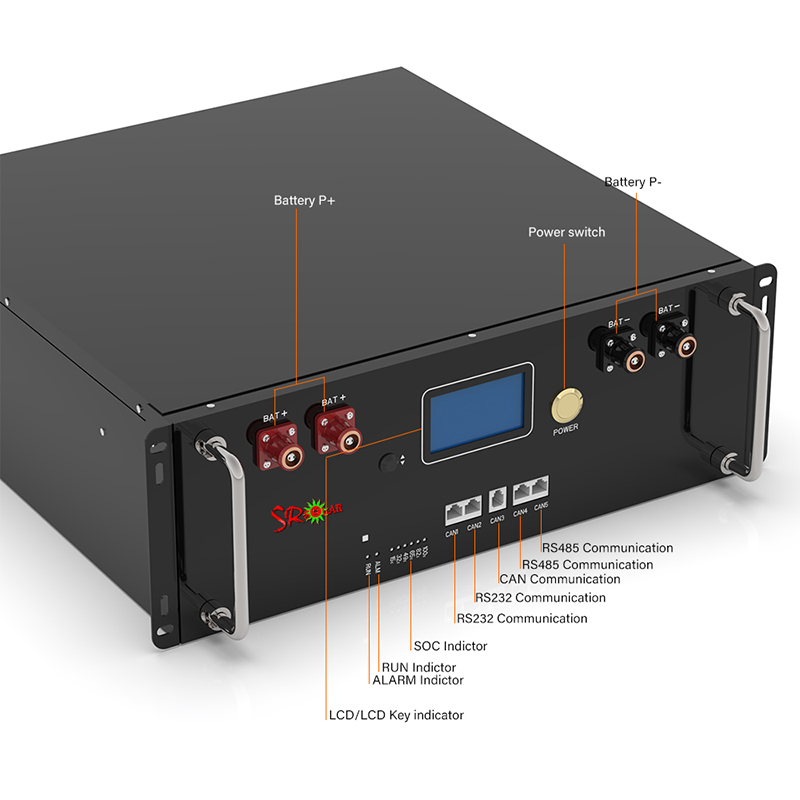

4.Communication:RS232/RS485/CAN/(Wifi/Bluetooth)optional, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries
|
Item
|
5KW
|
10KW
|
15KW
|
||
|
Model
|
SR-RK5100
|
SR-RK5200
|
SR-RK5300
|
||
|
Battery type
|
LiFePo4 Battery
|
||||
|
Nominal Voltage
|
51.2V
|
||||
|
Nominal Capacity
|
100Ah
|
200Ah
|
304Ah
|
||
|
Max.discharge current(A)
|
Continuous 100A
|
Continuous 100A
|
Continuous 100A
|
||
|
Max charge current
|
100A
|
100A
|
100A
|
||
|
Cycle Life(DOD 80%)
|
＞6000 Cycles
|
＞6000 Cycles
|
＞6000 Cycles
|
||
|
BMS
|
16S LFP 100A
|
||||
|
Working temperature
|
-20℃～+60℃
|
||||
|
Safety standard
|
CE IEC62619 IEC62133 UN38.3
|
||||
|
Dimension(cm)
|
56.6*43*17
|
62*52.4*28
|
75*52.4*29.7
|
||
|
Weights
|
45KG
|
85KG
|
85KG
|
||
