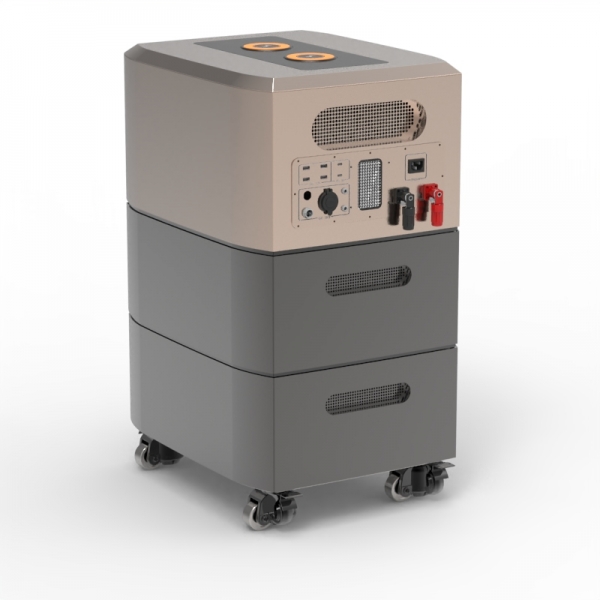

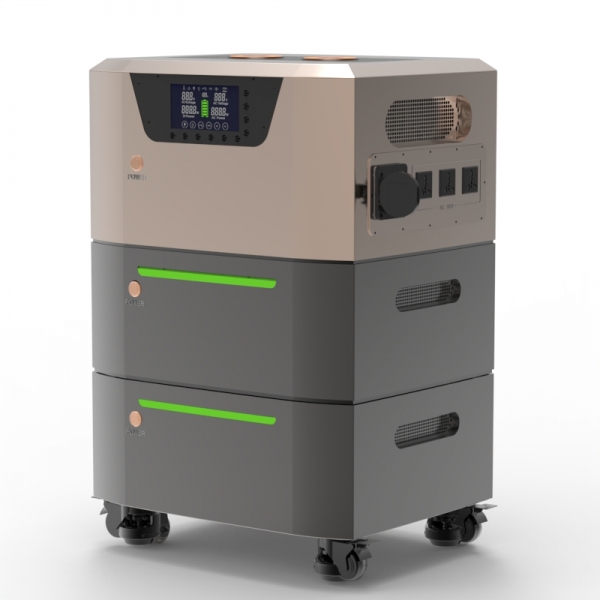

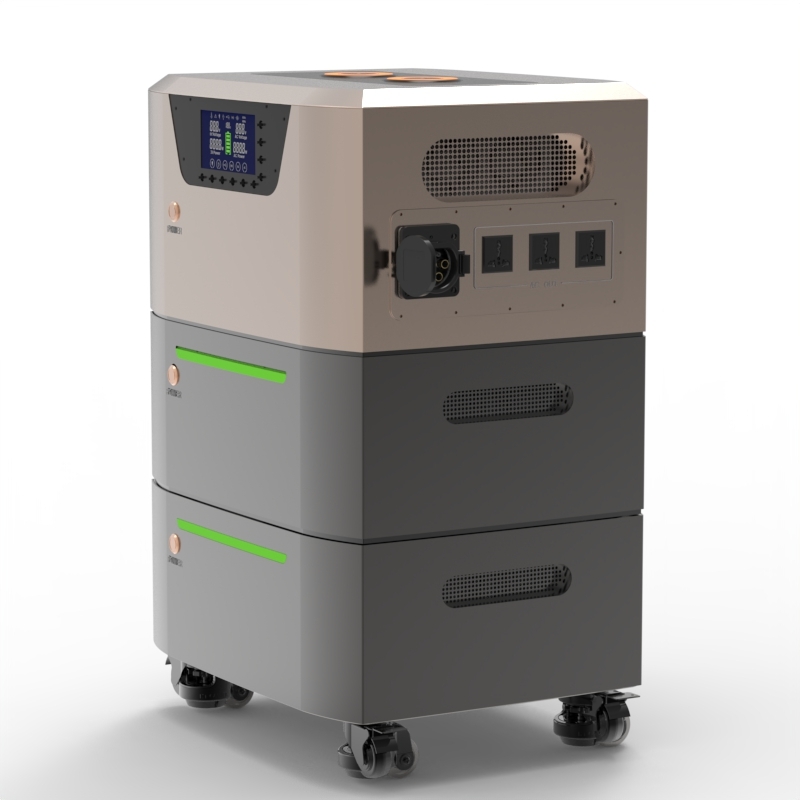

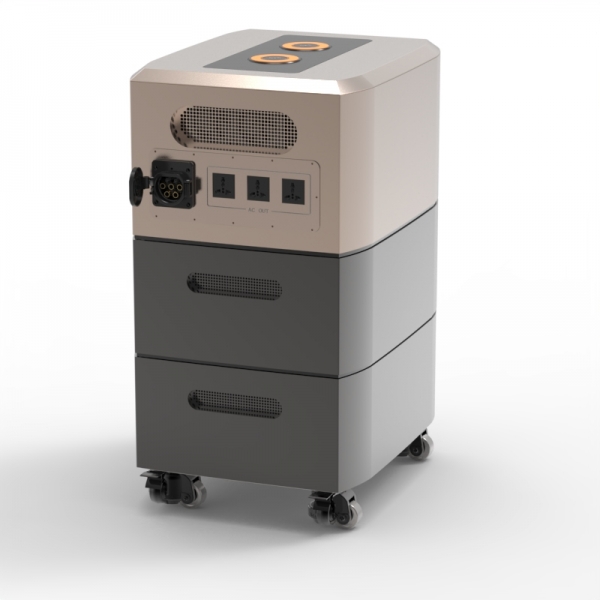

10KWh Stacked ESS Hybrid Inverter with 48V Lithium Battery
Product Overview

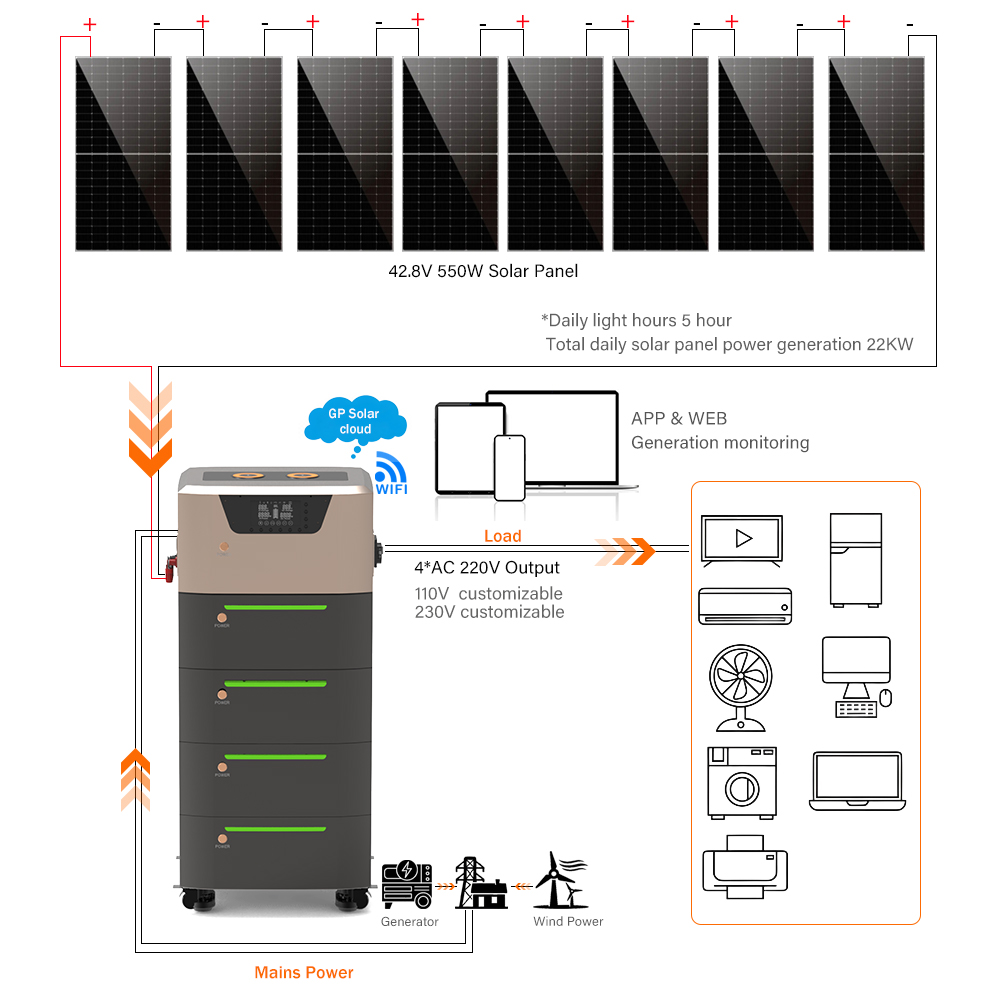

SRSOLAR LS series is all-in-one stackable ESS for home energy storage solution, which uses flexible stackable design, easy to install and operate. This all-in-one energy storage system offer an economical and self-sufficiency solution to power home appliance or equipment by storing excess clean energy during the daytime. This All-in-one stackable ESS also comes with a built-in WIFI function, users can monitor and operate system performance anytime and anywhere by mobile. Compact and floor installation offers the flexibility.
Main Features
l Modular stacking design.Hybrid Inverter with lithium ion battery and mppt controller.
l Stackable LiFePO4 battery modules and hybrid inverter module, easy capacity expansion
l Selectable priority between solar batteries or mains to feed the output
l Wide range of selectable mains input voltage (110V/220V/230V/240V)
l Protection for over-discharge, overload, over tempearture, short circuit protection, ets
l Support communication interface RS232, RS485, CAN, Bluetooth
.jpg)
Product Specification
|
Item |
5KW |
10KW |
15KW |
20KW |
25KW |
|
Model |
LS-5K5B |
LS-5K10B |
LS-5K15B |
LS-5K20B |
LS-5K25B |
|
Inverter |
|||||
|
Inverter Type |
5KW Hybrid Inverter (Optional 10KW) |
||||
|
Output Power |
5000W |
||||
|
Output Voltage |
210V-230V 50Hz AC |
||||
|
PV Array MPPT Voltage |
120Vdc-450Vdc |
||||
|
Peak Efficiency |
>95% battery mode >99% line mode |
||||
|
Transfer Time |
10ms |
||||
|
Peak Power |
5500W |
||||
|
Communication |
RS232 RS485 CAN WIFI |
||||
|
Lithium Battery |
|||||
|
Nominal Voltage |
51.2V |
||||
|
Nominal Capacity |
100Ah |
||||
|
Energy |
5.12KWh |
10.24Wh |
15.56KWh |
20.48KWh |
25.6KWh |
|
Max Discharge Current |
Continuous 100A |
||||
|
Max Charge Current |
100A (Continuous 40A) |
||||
|
Charge Cut-Off Voltage |
58.4V |
||||
|
Discharge Cut Off Voltage |
40V |
||||
|
DOD |
80% |
||||
|
Noise Emission |
<50db |
||||
|
Operating Temperature |
-20°-60° |
||||
|
Storage Temperature |
0-45° |
||||
|
Cycle Life |
6000+ Cycles |
||||
|
Communication |
RS232 RS485 CAN |
||||
|
Battery cell |
Lifepo4 cell 16S1P |
||||
|
Cooling Mode |
Active Cooling |
||||
|
Warranty |
5Years |
||||
