5-25KWh Stacked ESS lithiium Battery Energy Storage System
Product Overview
SRSOLAR LS series is all-in-one stackable ESS for home energy storage solution, which uses flexible stackable design, easy to install and operate. This all-in-one energy storage system offer an economical and self-sufficiency solution to power home appliance or equipment by storing excess clean energy during the daytime. This All-in-one stackable ESS also comes with a built-in WIFI function, users can monitor and operate system performance anytime and anywhere by mobile. Compact and floor installation offers the flexibility.
Main Features
>Modular stacking design.Hybrid Inverter with lithium ion battery and mppt controller.

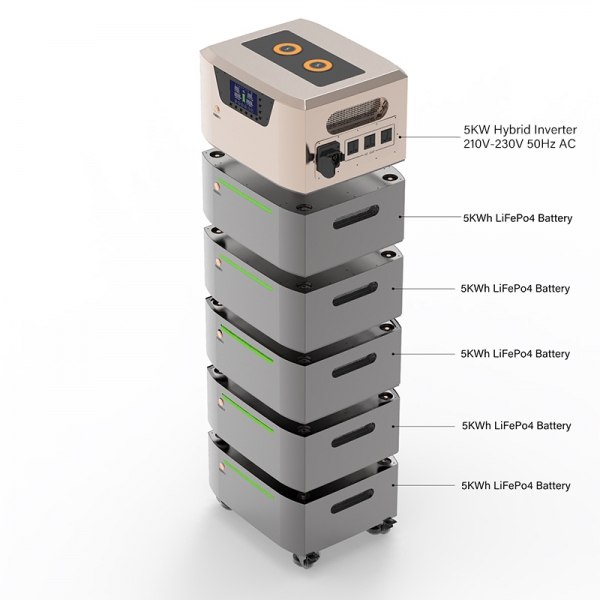

>Stackable LiFePO4 battery modules and hybrid inverter module, easy capacity expansion
>Selectable priority between solar batteries or mains to feed the output
>Wide range of selectable mains input voltage (110V/220V/230V/240V)
>Protection for over-discharge, overload, over tempearture, short circuit protection, ets
>Support communication interface RS232, RS485, CAN, Bluetooth
Product Specification
|
Item
|
5KW
|
10KW
|
15KW
|
20KW
|
25KW
|
|
Model
|
LS-5K5B
|
LS-5K10B
|
LS-5K15B
|
LS-5K20B
|
LS-5K25B
|
|
Inverter
|
|||||
|
Inverter Type |
5KW Hybrid Inverter (Optional 10KW) |
||||
|
Output Power |
5000W
|
||||
|
Output Voltage
|
210V-230V 50Hz AC
|
||||
|
PV Array MPPT Voltage
|
120Vdc-450Vdc
|
||||
|
Peak Efficiency
|
>95% battery mode >99% line mode
|
||||
|
Transfer Time
|
10ms
|
||||
|
Peak Power
|
5500W
|
||||
|
Communication
|
RS232 RS485 CAN WIFI
|
||||
|
Lithium Battery
|
|||||
|
Nominal Voltage
|
51.2V
|
||||
|
Nominal Capacity
|
100Ah
|
||||
|
Energy
|
5.12KWh
|
10.24Wh
|
15.56KWh
|
20.48KWh
|
25.6KWh
|
|
Max Discharge Current
|
Continuous 100A
|
||||
|
Max Charge Current
|
100A (Continuous 40A)
|
||||
|
Charge Cut-Off Voltage
|
58.4V
|
||||
|
Discharge Cut Off Voltage
|
40V
|
||||
|
DOD
|
80%
|
||||
|
Noise Emission
|
<50db
|
||||
|
Operating Temperature
|
-20°-60°
|
||||
|
Storage Temperature
|
0-45°
|
||||
|
Cycle Life
|
6000+ Cycles
|
||||
|
Communication
|
RS232 RS485 CAN
|
||||
|
Battery cell
|
Lifepo4 cell 16S1P
|
||||
|
Cooling Mode
|
Active Cooling
|
||||
|
Warranty
|
5Years
|
||||
