15KWh Stacked ESS All In One Solar LiFePo4 Battery
Product Overview
SRSOLAR LS series is all-in-one stackable ESS for home energy storage solution, which uses flexible stackable design, easy to install and operate. This all-in-one energy storage system offer an economical and self-sufficiency solution to power home appliance or equipment by storing excess clean energy during the daytime. This All-in-one stackable ESS also comes with a built-in WIFI function, users can monitor and operate system performance anytime and anywhere by mobile. Compact and floor installation offers the flexibility.
Main Features

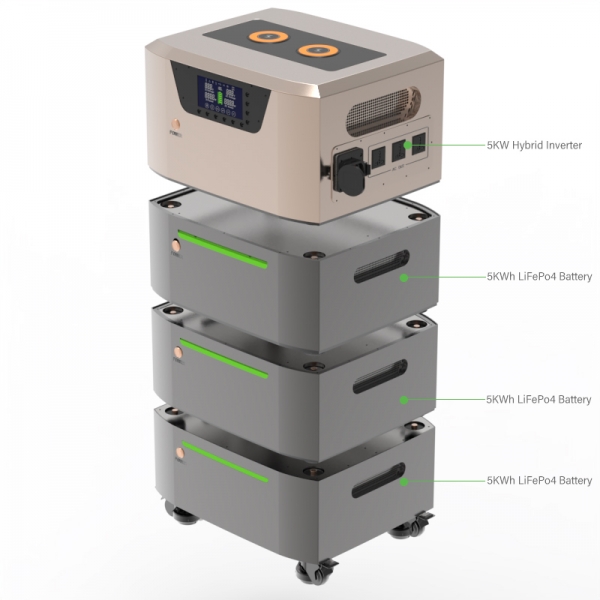

Modular stacking design.Hybrid Inverter with lithium ion battery and mppt controller.
Stackable LiFePO4 battery modules and hybrid inverter module, easy capacity expansion
Selectable priority between solar batteries or mains to feed the output
Wide range of selectable mains input voltage (110V/220V/230V/240V)
Protection for over-discharge, overload, over tempearture, short circuit protection, ets
Support communication interface RS232, RS485, CAN, Bluetooth
.jpg)
Product Specification
|
Item
|
5KW
|
10KW
|
15KW
|
20KW
|
25KW
|
|
Model
|
LS-5K5B
|
LS-5K10B
|
LS-5K15B
|
LS-5K20B
|
LS-5K25B
|
|
Inverter
|
|||||
|
Inverter Type |
5KW Hybrid Inverter (Optional 10KW) |
||||
|
Output Power |
5000W
|
||||
|
Output Voltage
|
210V-230V 50Hz AC
|
||||
|
PV Array MPPT Voltage
|
120Vdc-450Vdc
|
||||
|
Peak Efficiency
|
>95% battery mode >99% line mode
|
||||
|
Transfer Time
|
10ms
|
||||
|
Peak Power
|
5500W
|
||||
|
Communication
|
RS232 RS485 CAN WIFI
|
||||
|
Lithium Battery
|
|||||
|
Nominal Voltage
|
51.2V
|
||||
|
Nominal Capacity
|
100Ah
|
||||
|
Energy
|
5.12KWh
|
10.24Wh
|
15.56KWh
|
20.48KWh
|
25.6KWh
|
|
Max Discharge Current
|
Continuous 100A
|
||||
|
Max Charge Current
|
100A (Continuous 40A)
|
||||
|
Charge Cut-Off Voltage
|
58.4V
|
||||
|
Discharge Cut Off Voltage
|
40V
|
||||
|
DOD
|
80%
|
||||
|
Noise Emission
|
<50db
|
||||
|
Operating Temperature
|
-20°-60°
|
||||
|
Storage Temperature
|
0-45°
|
||||
|
Cycle Life
|
6000+ Cycles
|
||||
|
Communication
|
RS232 RS485 CAN
|
||||
|
Battery cell
|
Lifepo4 cell 16S1P
|
||||
|
Cooling Mode
|
Active Cooling
|
||||
|
Warranty
|
5Years
|
||||
